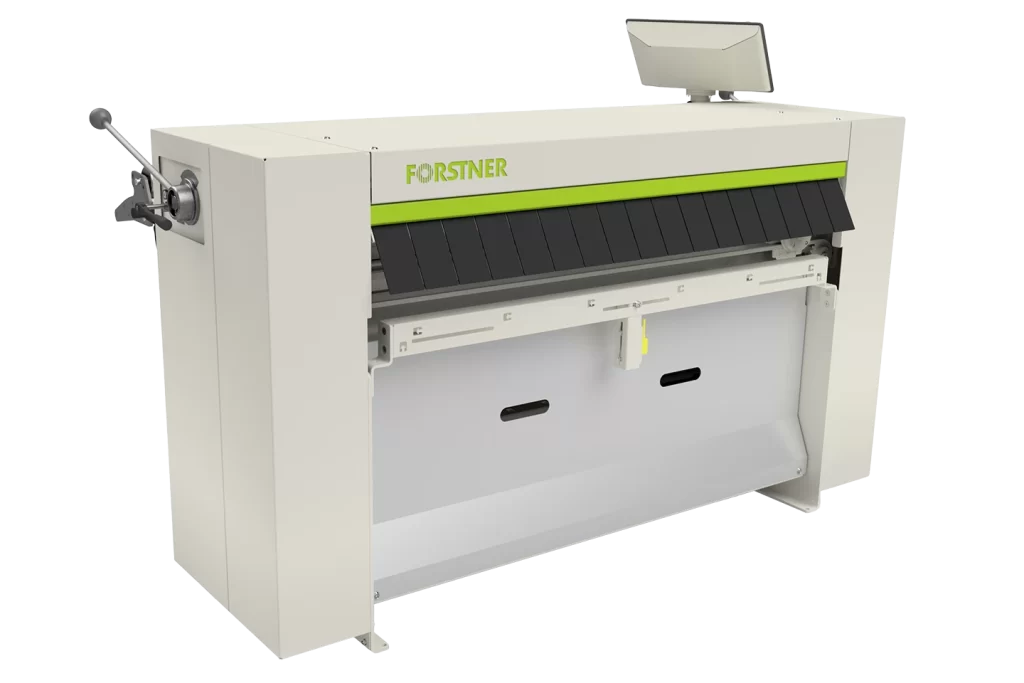

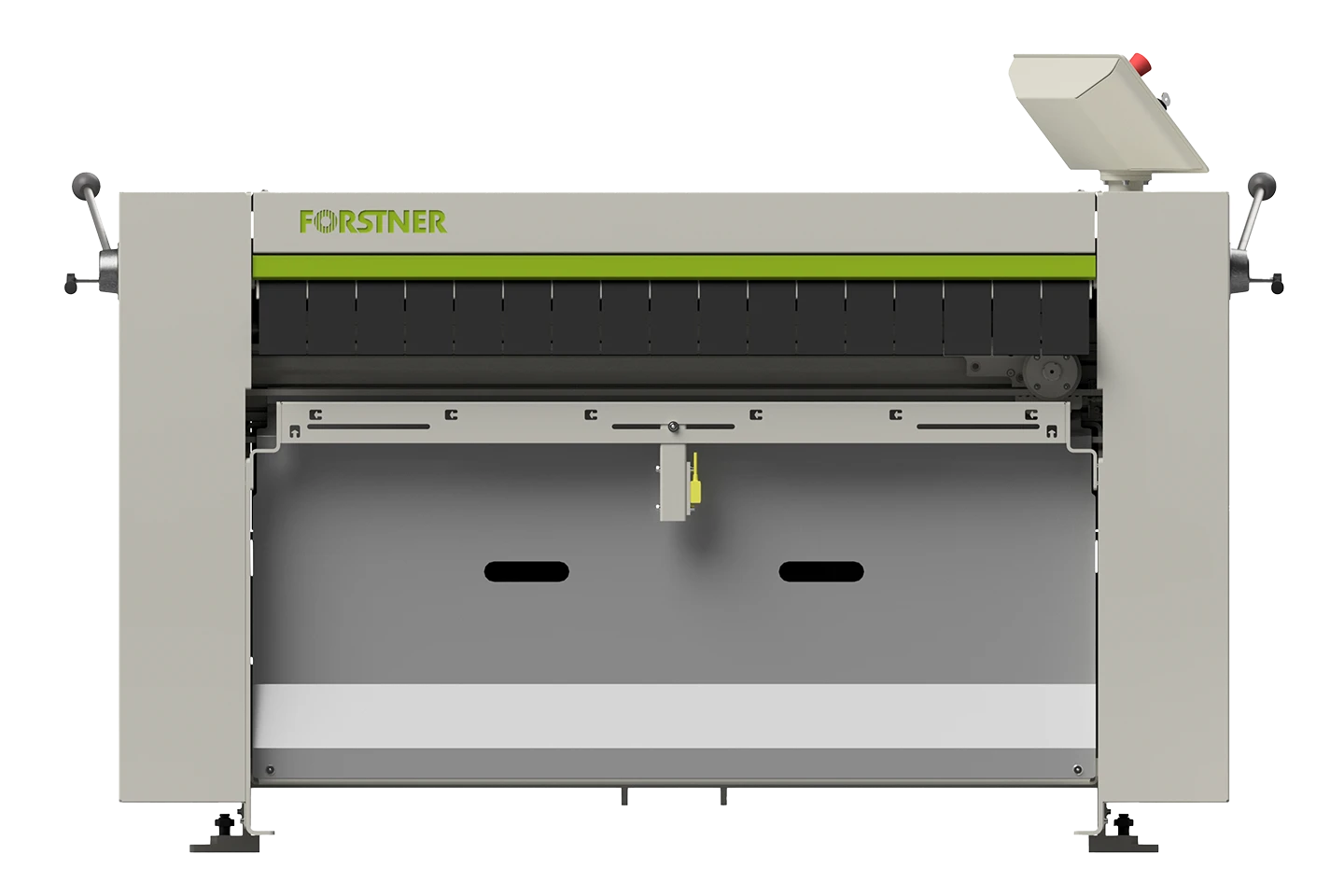

Forstner EASY
Forstner EASY is a user-friendly Cut to Length for coil processing, where the user easily sets lengths and quantities. It straightens and cuts sheet metal with high precision. Available as EASY CUT with slitting shear for standard capacity and EASY PRO with guillotine shear for increased cutting capacity, both with minimal waste and burr-free cuts.
EASY
Smart Advantages
- Small and compact yet very powerful
- Straightener with three rollers
- Smart and user-friendly control system
- High feeding speed
- Easy-to-use machine
- Simplest possible adjustment of slitting knives
Key advantages
Easy and intuitive control system
Efficient with low maintenance requirements
Suitable for a wide range of materials commonly used in the construction industry
Capacity
Unmatched precision and flexibility.
Working length
1250 mm
Speed
25 m/min
Steel thickness
1,5 – 1,0 mm
Straightener
The EASY series is equipped with 3 manual straightening rollers that eliminate coil memory and consistently deliver straightened material. The rollers are made of polished steel and have a diameter of 70 mm. The pressure on the straightening rollers is adjusted with lockable handles equipped with a reference scale.
Infeed Guide
The rollers of the infeed guide are angled to match the loop of the material from a decoiler. This prevents damage and creases to softer materials such as copper, aluminum, and zinc.

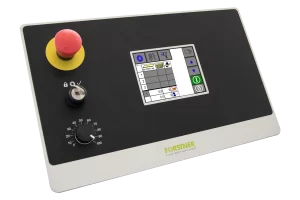

Control system S1
S1 control system with touchscreen and intuitive functions. It is easy to program different quantities and lengths. The control system communicates with an electronic eye and automatically sets the zero point and performs a perpendicular clean cut. The control system has a material-saving function that stops the machine, raises the slitting knives, and feeds the sheet forward to the shear. An optional wireless remote control can operate a motorized decoiler or recoiler.

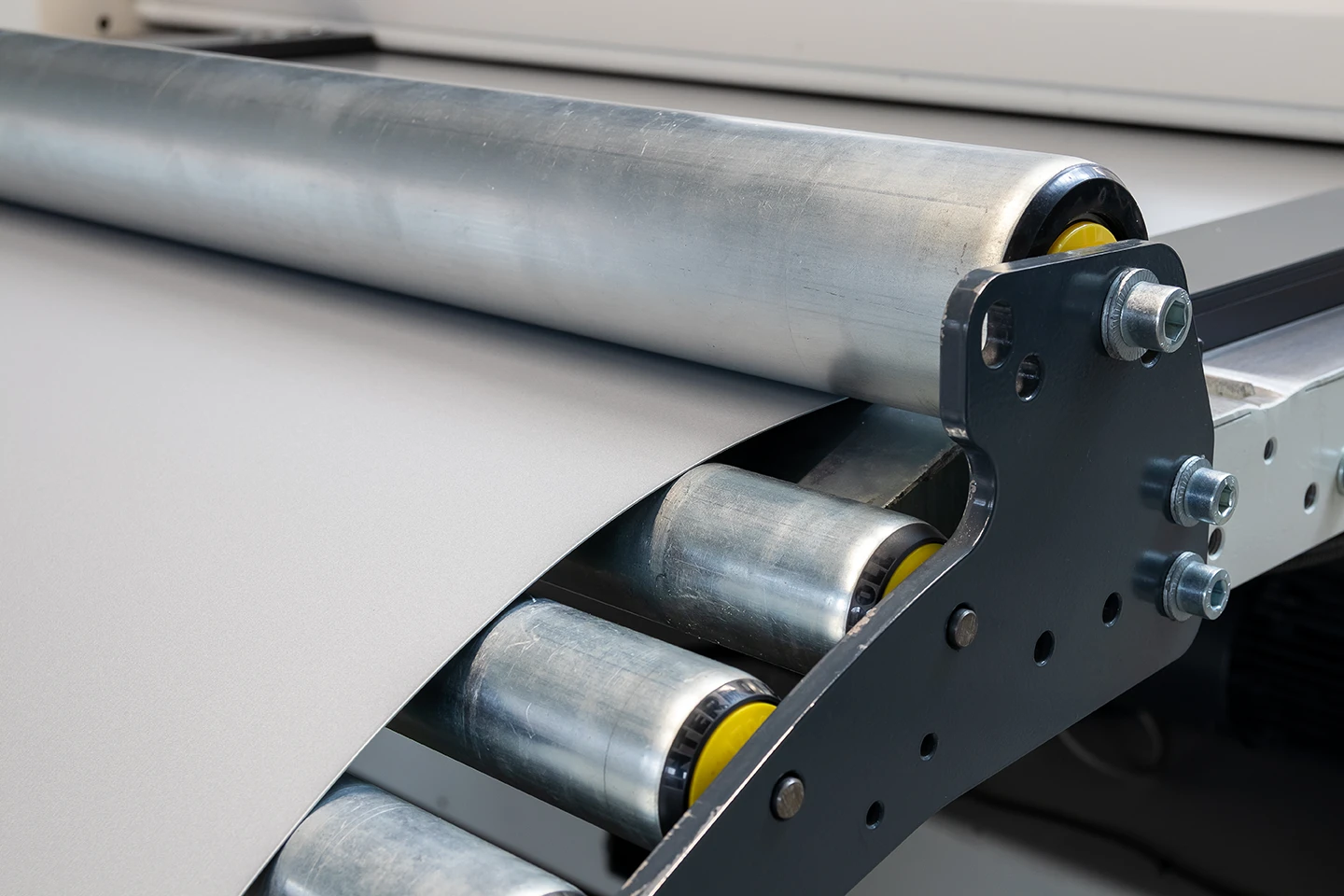

Infeed Table
The infeed table has four ball-bearing rollers that guide the sheet metal to the infeed rollers. Thanks to the ball bearings, the sheet metal can be fed forward and backward without the risk of damaging the edges. They also help keep the material parallel and ensure perpendicular cuts.
OPTION
Film applicator
The film applicator can basically be mounted on any table. Using the deflection rollers and the fully rubberized feed rollers, the protective film is pressed on almost bubble and wrinkle-free. The device type F-AG z2mo has an additional arm with tension spring for tensioning the film during the return movement. This design is only applicable for single decoiling systems. Film applicator available in both 1250 and 1500 mm.
OPTION
Decoiler units
Choose from a simple cradle up to motorized versions. Read more under respectively product.
OPTION
Foot switch
Add a foot switch to your machine in the EASY series for external start of next order.
OPTION
Manual coilselector
The manual coilselector is a very cost-effective solution for quick and easy manual sheet metal changes. Up to eight coils are fixed in the manual coilselector. The desired sheet metal is manually pushed into the downstream machine via a handwheel.
OPTION
Recoiler
With this recoiler, slits or wide strips can be easily recoiled. The coils are wound tightly to a diameter of 508 mm and an optically clean coil is produced after wrapping and removal. The recoiler has a dancer arm, separating discs, a pneumatic felt brake, a motor and a hydraulic mandrel.
OPTION
Fully rubberized pich rollers
If you want to prepare your line for a film applicator, then the option with the fully rubberized rollers is ideal for you. This means that your line is ideally prepared for retrofitting a film applicator at any time and with ease. Fully rubberized pinch rollers available in both 1250 and 1500 mm.
OPTION
Roller shear for stainless steel
Upgrade the roller shear to one that is better suited for stainless steel.
OPTION
Guillotine shear for stainless steel
Upgrade the guillotine shear to one that is better suited for stainless steel.
OPTION
Upgrade speed
Standard feeding speed for EASY series is 25 m/min. You can upgrade the feeding speed to 35 m/min or 45 m/min.
Film Application
Film application equipment can essentially be mounted on all our infeed tables. Thanks to support rollers and rubberized feed rollers, the film is pressed onto the sheet metal without the risk of bubbles or wrinkles. The F-AG z2mo module has an extra arm with a tension spring that tightens the film during the return motion. This design is only applicable to systems with one decoiler.
Discover the smart planning tool for sheet metal profiles
Efficient sheet metal processing begins and ends with nuEvolution from nuIT – the smart planning tool that revolutionizes your entire manufacturing process. Combine nuEvolution with the impressive power and agility of CIDAN’s machines for perfect oversight, great results, shorter lead times, and increased profitability. All you need is a tablet or laptop and your finger.
Technical specifications
| Model | EASY CUT 1250 | EASY PRO 1250 |
|---|---|---|
| Working width | 1250 mm | 1500 mm |
| Type | Cut to length | Cut to length |
| Steel1 | 1,0 mm | 1,5 mm |
| Stainless steel2 | 0,6 mm | 1,0 mm |
| Aluminum3 | 1,2 mm | 1,8 mm |
Discover Our Smart Solutions in Action
Explore how CIDAN’s machines perform in production. Each video highlights key features designed to make your sheet metal processing faster, smarter, and more efficient. Get inspired, see the difference – and imagine what’s possible for your business.
Forstner EASY Cut-to-length with straightening unit
